AUTOUTLET Digital Tyre Depth Gauge Tread Checker Motorbike

Multifunctional

Manual on and off.

Set to zero at each position.

There is a large liquid crystal display.

Wide Applicability

Can be used to measure the wear of brake shoes and brake linings.

Developed with a galvanized iron probe, suitable for measuring the depth of the profile.

Small and Light & 2 Units of Measure

Switchable metric / inch system.

Small and light, easy to carry.

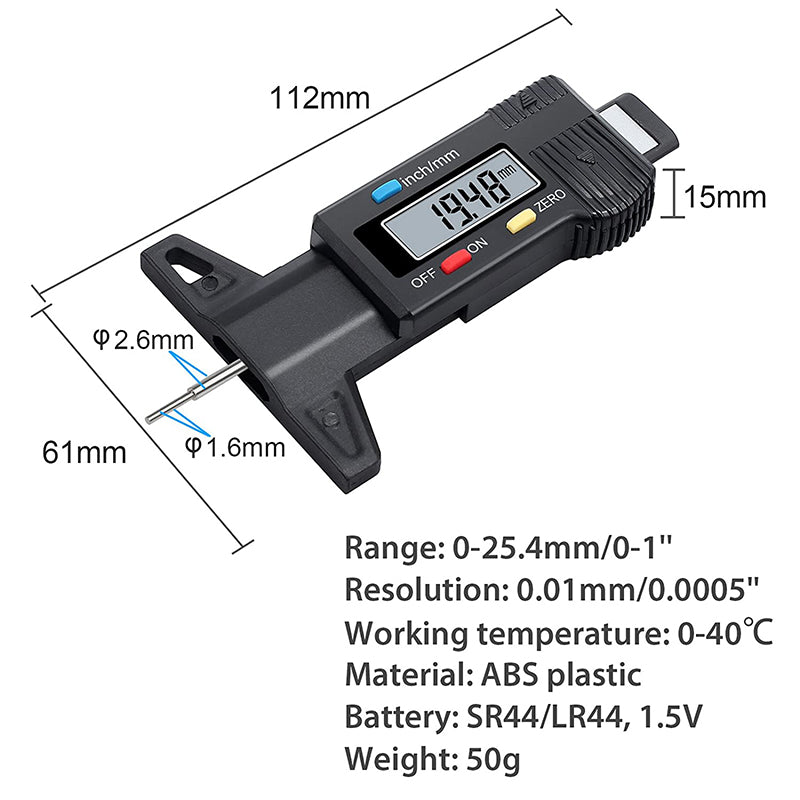

Characteristics

Material: ABS plastic

Measuring range: 0-25.4mm

Resolution: 0.01mm

Operating temperature: 0-40 ° C

Battery: 1 button cell 1.5 V LR44

Product size: about 11.5 x 6 x 1.5cm

Product weight: 50 G

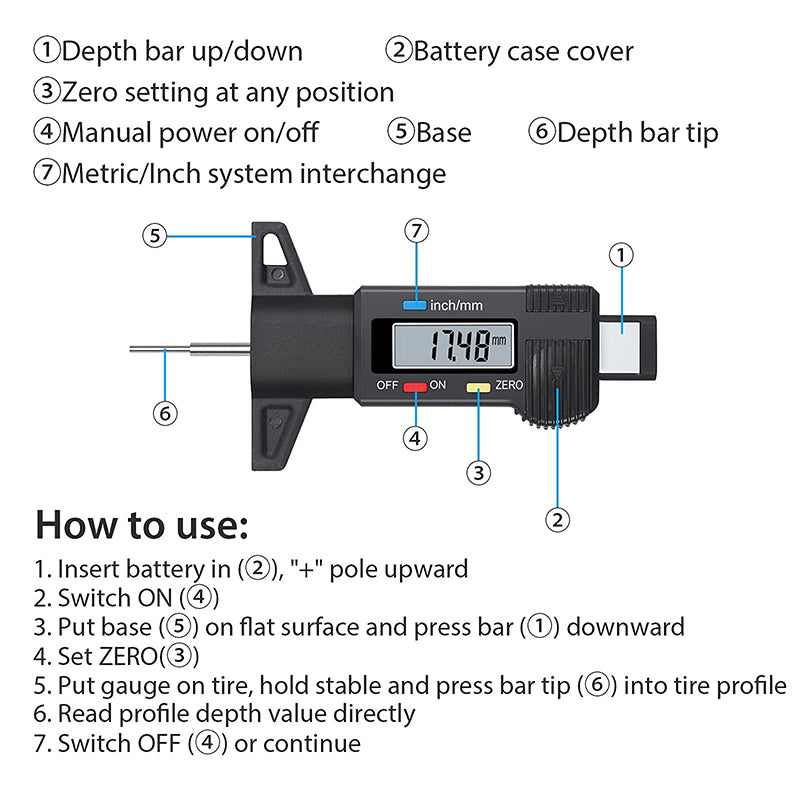

How to Use

Insert the battery into (2), + pole up

Switch on (4)

Place the base (5) on a flat surface and press the rod (1) down

Define ZERO (3)

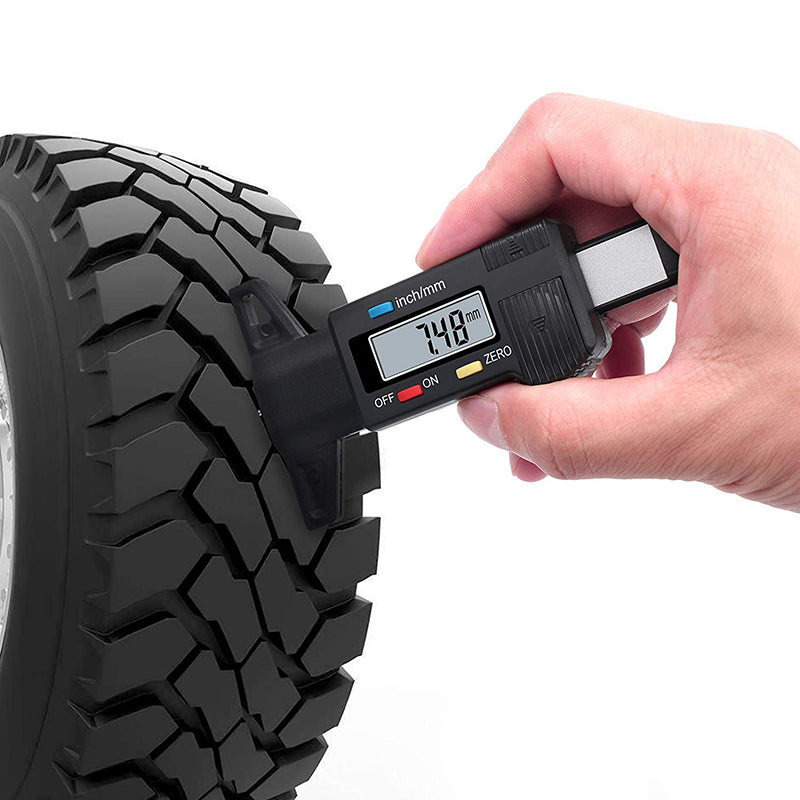

Place the measurement on the tire, keep it stable and push the end of the rod (6) into the tire profile

Read directly the value of the tread depth

Switch off (4) or continue

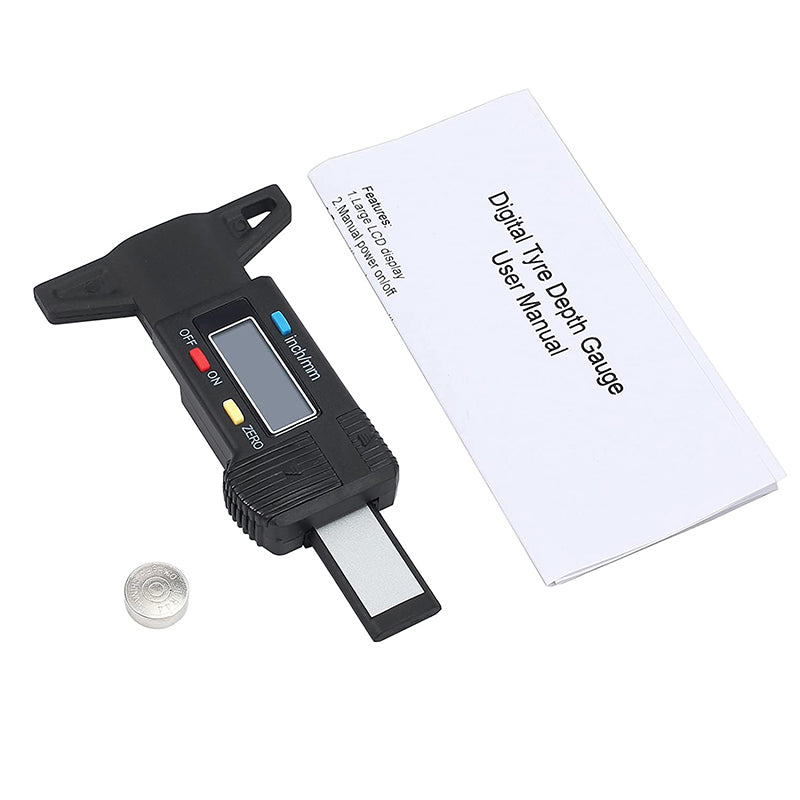

Package Contents:

1 x Digital Tread Meter (with battery)

1 x English Manual
